Scrapbook #1 - Views and Layers

An introduction to Cappuccino Graphics

This tutorial is the first in a multi-part series in which we will be building a full featured Scrapbooking application, complete with backend storage. The goal of these tutorials is to start off simple and incrementally add features, mimicking the development of a real world application and allowing us to focus on different aspects of Cappuccino along the way. For this first installment, we will be getting familiar with Cappuccino’s view hierarchy and graphics subsystem.

The Idea

Before we jump into any serious programming, let’s begin by getting a good idea of what we’re building. The goal of the scrapbook application is to provide users with a place to arrange their photos into albums. These albums will have different themes and allow users to insert, scale, rotate, and crop their images. When done, they will be able to save and share their albums.

As I mentioned earlier, we will be focusing on some of the core graphical aspects of this application right now, and saving most of the overall design decisions of this application for later. So the very first thing we’re going to tackle is building a solid UI for scaling and cropping images. The plan is to present the user with a few controls in a heads up display which will allow them to manipulate selected images, and then go away when the user is done editing. You can see a working example of this here. You should take a few minutes to play around with it and get an idea of what we will be building. You can also view or download the entire source of the application here if you prefer to follow along with the code.

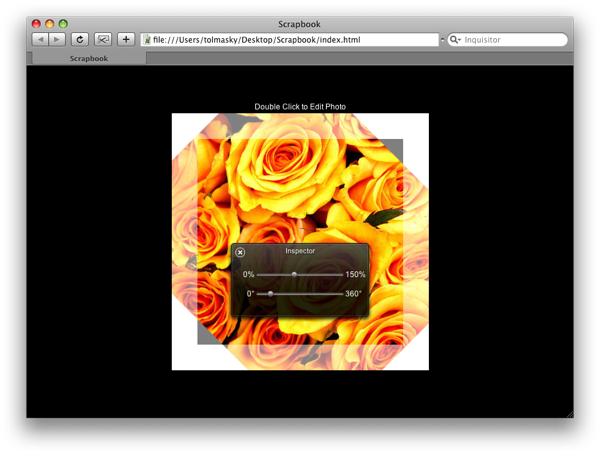

Completed App

Setting Up the Project

Since we’re not doing anything too complex yet, we’re going to build off of the Starter Template. Open up AppController.j and delete all the code relating to the HelloWorld textfield, such that all that is left in applicationDidFinishLaunching: is the following:

- (void)applicationDidFinishLaunching:(CPNotification)aNotification
{
    var theWindow = [[CPWindow alloc]
                        initWithContentRect:CGRectMakeZero()
                        styleMask:CPBorderlessBridgeWindowMask],
        contentView = [theWindow contentView];

    [theWindow orderFront:self];
}

If you now rerun this application by hitting refresh, you will see that nothing shows up on the screen. So let’s take a moment to understand what is going on in these very few lines of code.

In Cappuccino, all view hierarchies start from within a CPWindow. So to get anything to display on the screen, we first require the creation of a window. CPWindows should not be confused with the browser window however. CPWindows exist within the main browser window, and there can be multiple of them. The relationship between CPWindow and the browser window is similar to that between Desktop windows and the screen. In Cappuccino, we often refer to the browser window as the bridge, since the browser window bridges the web to the desktop.

When you create a CPWindow, you generally specify the content rectangle and style mask. The content rectangle describes the position and size of the inner content ignoring the chrome around it. The style mask describes the chrome, or look, of the window. In this case, we are creating a window with the “borderless bridge” look. The borderless bridge style describes a CPWindow with no chrome at all, and that takes up the entire size of the browser window, which is why we don’t bother sending a meaningful value in for the content rectangle – it gets set automatically for us. The CPBorderlessWindowMask is similar to this, but does not follow the size of the browser window.

Now, the contentView of a CPWindow is the root view class of a window. This is where you will be putting all of your custom UI, such as buttons, text fields, etc. Let’s go ahead and set the color of our content view to be black by adding this code right after the declaration:

[contentView setBackgroundColor:[CPColor blackColor]];

If you refresh now, you’ll see that the entire browser window has turned black. This is because, as we described earlier, borderless bridge windows “fit” their parent browser windows.

Photo Inspector

Since we’re on the topic of windows, let’s go ahead and make our heads-up-display (HUD) controller that we mentioned earlier. First, let’s just make a HUD panel. A panel is a type of window that floats on top of other windows. Create a panel in the applicationDidFinishLaunching: method:

var HUDPanel = [[CPPanel alloc]
    initWithContentRect:CGRectMake(0, 0, 225, 125)
    styleMask:CPHUDBackgroundWindowMask | CPClosableWindowMask];

[HUDPanel setFloatingPanel:YES];

[HUDPanel orderFront:self];

Now if you refresh, you’ll see a little HUD panel show up at the top left corner of your screen. You can drag on it to move it around, and click on the close box to close it. As you can see, in this case we specified an actual content rectangle since we aren’t relying on the panel simply stretching to the entire size of the bridge. We chose two style masks in this case: CPHUDBackgroundWindowMask and CPClosableWindowMask. CPHUDBackgroundWindowMask notifies our panel that we want the HUD look, and CPClosableWindowMask lets the panel know that it should display its close box. If you remove the CPClosableWindowMask mask, you will no longer be able to close the panel.

Let’s start giving the panel some contents. The easiest thing to add is a title:

[HUDPanel setTitle:"Inspector"];

We will now add our two sliders to control the scale and rotation of our photos. To do this we will use the CPSlider class. Just as we did with the main window, we will grab the contentView of the HUD panel to place these sliders in:

var panelContentView = [HUDPanel contentView],
    centerX = (CGRectGetWidth([panelContentView bounds]) - 135.0) / 2.0;

var scaleSlider = [[CPSlider alloc] initWithFrame:CGRectMake(centerX, 13.0, 135.0, 24.0)];

[scaleSlider setMinValue:50];
[scaleSlider setMaxValue:150];
[scaleSlider setValue:100];

[panelContentView addSubview:scaleSlider];

var scaleStartLabel = [self labelWithTitle:"50%"],
    scaleEndLabel = [self labelWithTitle:"150%"];

[scaleStartLabel setFrameOrigin:CGPointMake(
    centerX - CGRectGetWidth([scaleStartLabel frame]), 10)];
[scaleEndLabel setFrameOrigin:
    CGPointMake(CGRectGetMaxX([scaleSlider frame]), 10)];

[panelContentView addSubview:scaleStartLabel];
[panelContentView addSubview:scaleEndLabel];

rotationSlider = [[CPSlider alloc] initWithFrame:
    CGRectMake(centerX, 43, 135, 24)];

[rotationSlider setMinValue:0];
[rotationSlider setMaxValue:360];
[rotationSlider setValue:0];

[panelContentView addSubview:rotationSlider];

var rotationStartLabel = [self labelWithTitle:"0\u00B0"],
    rotationEndLabel = [self labelWithTitle:"360\u00B0"];

[rotationStartLabel setFrameOrigin:CGPointMake(centerX - CGRectGetWidth([rotationStartLabel frame]), 40)];
[rotationEndLabel setFrameOrigin:CGPointMake(CGRectGetMaxX([rotationSlider frame]), 40)];

[panelContentView addSubview:rotationStartLabel];
[panelContentView addSubview:rotationEndLabel];

You’ll notice this makes use of the labelWithTitle: method that we have not yet defined. Go ahead and define it in AppController like so:

- (CPTextField)labelWithTitle:(CPString)aTitle
{
    var label = [[CPTextField alloc] initWithFrame:CGRectMakeZero()];

    [label setStringValue:aTitle];
    [label setTextColor:[CPColor whiteColor]];

    [label sizeToFit];

    return label;
}

This may seem daunting, but it’s really not that complex. Let’s start by analyzing the labelWithTitle: method. It should look familiar, since it’s almost identical to the code that was in the original implementation of applicationDidFinishLaunching:. All we are doing is creating a text field, setting its text contents to be aTitle, setting its text color to white, and finally sizing it appropriately and returning it.

In the slider creation code we are creating two sliders: one to modify scale and another for rotation, so we only really need to go over half the code. We are making our sliders 135 pixels wide, so begin by calculating the center position in our panel’s content view. After we have this, We create a new slider at this position. We then set three important values for sliders: the minimum value, the maximum value, and the current value. The minimum value is what the left hand side of the slider represents, the maximum is what the right hand side represents, and the current value is simply where the knob of the slider currently resides. In this case of the scaleSlider, we want to be able to scale our photos from 50% to 150%, and obviously we want them to begin at 100%. With the rotationSlider, we want to go from 0 degrees to 360 degrees, and start at 0 degrees. To highlight these values, we create 2 labels for each slider to sit to the left and to the right of the sliders. So, your code should now look like this:

- (void)applicationDidFinishLaunching:(CPNotification)aNotification
{
    var theWindow = [[CPWindow alloc]
                        initWithContentRect:CGRectMakeZero()
                        styleMask:CPBorderlessBridgeWindowMask],
        contentView = [theWindow contentView];

    [theWindow orderFront:self];

    var HUDPanel = [[CPPanel alloc]
        initWithContentRect:CGRectMake(0, 0, 225, 125)
        styleMask:CPHUDBackgroundWindowMask | CPClosableWindowMask];

    [HUDPanel setFloatingPanel:YES];

    [HUDPanel orderFront:self];

    [HUDPanel setTitle:"Inspector"];

    var panelContentView = [HUDPanel contentView],
        centerX = (CGRectGetWidth([panelContentView bounds])
        - 135) / 2;

    var scaleSlider = [[CPSlider alloc]
        initWithFrame:CGRectMake(centerX, 13, 135, 24)];

    [scaleSlider setMinValue:50];
    [scaleSlider setMaxValue:150];
    [scaleSlider setValue:100];

    [panelContentView addSubview:scaleSlider];

    var scaleStartLabel = [self labelWithTitle:"50%"],
        scaleEndLabel = [self labelWithTitle:"150%"];

    [scaleStartLabel setFrameOrigin:CGPointMake(centerX -
        CGRectGetWidth([scaleStartLabel frame]), 10)];
    [scaleEndLabel setFrameOrigin:
        CGPointMake(CGRectGetMaxX([scaleSlider frame]), 10)];

    [panelContentView addSubview:scaleStartLabel];
    [panelContentView addSubview:scaleEndLabel];

    rotationSlider = [[CPSlider alloc]
        initWithFrame:CGRectMake(centerX, 43, 135, 24)];

    [rotationSlider setMinValue:0];
    [rotationSlider setMaxValue:360];
    [rotationSlider setValue:0];

    [panelContentView addSubview:rotationSlider];

    var rotationStartLabel = [self labelWithTitle:"0\u00B0"],
        rotationEndLabel = [self labelWithTitle:"360\u00B0"];

    [rotationStartLabel setFrameOrigin:CGPointMake(centerX -
        CGRectGetWidth([rotationStartLabel frame]), 40)];
    [rotationEndLabel setFrameOrigin:
        CGPointMake(CGRectGetMaxX([rotationSlider frame]), 40)];

    [panelContentView addSubview:rotationStartLabel];
    [panelContentView addSubview:rotationEndLabel];
}

- (CPTextField)labelWithTitle:(CPString)aTitle
{
    var label = [[CPTextField alloc] initWithFrame:CGRectMakeZero()];

    [label setStringValue:aTitle];
    [label setTextColor:[CPColor whiteColor]];

    [label sizeToFit];

    return label;
}

@end

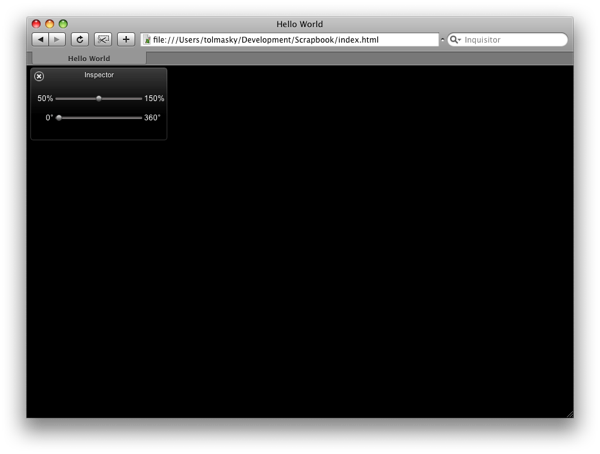

We now have a functioning panel, but it’s not much good to us here within the applicationDidFinishLaunching: method. So let’s create a new file called PhotoInspector.j to contain it.

In PhotoInspector.j, we will be creating a subclass of CPWindowController to manage this panel. CPWindowControllers are designed to manage CPWindows and their interactions with other objects. Once we’ve create this class, we’ll move all the relevant code to it, namely the labelWithTitle method and view creation code:

@import <AppKit/CPPanel.j>
@import <AppKit/CPWindowController.j>

@implementation PhotoInspector : CPWindowController
{
}

- (id)init
{
    var theWindow = [[CPPanel alloc]
        initWithContentRect:CGRectMake(0, 0, 225, 125)
        styleMask:CPHUDBackgroundWindowMask | CPClosableWindowMask];

    self = [super initWithWindow:theWindow];

    if (self)
    {
        [theWindow setTitle:@"Inspector"];
        [theWindow setFloatingPanel:YES];

        var contentView = [theWindow contentView],
            centerX = (CGRectGetWidth([contentView bounds]) - 135) / 2;

        scaleSlider = [[CPSlider alloc]
            initWithFrame:CGRectMake(centerX, 13, 135, 24)];

        [scaleSlider setMinValue:50];
        [scaleSlider setMaxValue:150];
        [scaleSlider setValue:100];

        [contentView addSubview:scaleSlider];

        var scaleStartLabel = [self labelWithTitle:"50%"],
            scaleEndLabel = [self labelWithTitle:"150%"];

        [scaleStartLabel setFrameOrigin:CGPointMake(centerX -
            CGRectGetWidth([scaleStartLabel frame]), 10)];
        [scaleEndLabel setFrameOrigin:
            CGPointMake(CGRectGetMaxX([scaleSlider frame]), 10)];

        [contentView addSubview:scaleStartLabel];
        [contentView addSubview:scaleEndLabel];

        rotationSlider = [[CPSlider alloc]
            initWithFrame:CGRectMake(centerX, 43, 135, 24)];

        [rotationSlider setMinValue:0];
        [rotationSlider setMaxValue:360];
        [rotationSlider setValue:0];

        [contentView addSubview:rotationSlider];

        var rotationStartLabel = [self labelWithTitle:"0\u00B0"],
            rotationEndLabel = [self labelWithTitle:"360\u00B0"];

        [rotationStartLabel setFrameOrigin:CGPointMake(centerX -
            CGRectGetWidth([rotationStartLabel frame]), 40)];
        [rotationEndLabel setFrameOrigin:
            CGPointMake(CGRectGetMaxX([rotationSlider frame]), 40)];

        [contentView addSubview:rotationStartLabel];
        [contentView addSubview:rotationEndLabel];
    }

    return self;
}

- (CPTextField)labelWithTitle:(CPString)aTitle
{
    var label = [[CPTextField alloc] initWithFrame:CGRectMakeZero()];

    [label setStringValue:aTitle];
    [label setTextColor:[CPColor whiteColor]];

    [label sizeToFit];

    return label;
}

@end

As you can see very little of the code has changed. The only real addition is calling initWithWindow: in the new init method. This is the standard way to create window controllers. We can now modify our AppController code to the following:

@import <Foundation/CPObject.j>
@import "PhotoInspector.j"

@implementation AppController : CPObject
{
}

- (void)applicationDidFinishLaunching:(CPNotification)aNotification
{
    var theWindow = [[CPWindow alloc]
                        initWithContentRect:CGRectMakeZero()
                        styleMask:CPBorderlessBridgeWindowMask],
        contentView = [theWindow contentView];

    [contentView setBackgroundColor:[CPColor blackColor]];

    [theWindow orderFront:self];

    var theInspector = [[PhotoInspector alloc] init];

    [theInspector showWindow:self];
}

@end

This successfully encapsulates the inspector panel away. To bring it up all we need to do now is call showWindow: on our PhotoInspector class, which we inherit for free from CPWindowController. You’ll notice we also had to include the PhotoInspector class’ file PhotoInspector.j. We use quotes to include this file because it is local, as opposed to the AppKit files which are in our default search paths.

Building the Beginnings of our PageView

Now that we have a photo inspector, we need some photos to inspect. In our product, Scrapbook will be represented as a series of pages. Each page will contain a number of panes that each contain an image. These pages will be represented by PageViews, so let’s start fleshing out our PageView class in a file called PageView.j.

@import <AppKit/CPView.j>

@implementation PageView : CPView
{
}

@end

As you can see, PageView is a subclass of CPView, the core UI class in Cappuccino. However, we will actually be doing the brunt of our graphics work not in a view, but in a layer. In Cappuccino, CALayers are designed and optimized for drawing and performing complex graphics routines, whereas CPViews are better at handling UI widgets. We can add layers to views by making them layer-backed:

@implementation PageView : CPView
{
    CALayer _rootLayer;
}

- (id)initWithFrame:(CGRect)aFrame
{
    self = [super initWithFrame:aFrame];

    if (self)
    {
        _rootLayer = [CALayer layer];

        [self setWantsLayer:YES];
        [self setLayer:_rootLayer];

        [_rootLayer setBackgroundColor:[CPColor whiteColor]];

        [_rootLayer setNeedsDisplay];
    }

    return self;
}

@end

Here we create the view as usual, but let the view know that it will be hosting a layer with the setWantsLayer: method, and adding the actual layer with setLayer:. We give the layer a background color, but need to call setNeedsDisplay for the layer to actually show itself. In Cappuccino, you never explicitly tell views or layers to draw, instead you inform them that they need to do so. This is because Cappuccino coalesces and optimizes drawing.

As we said earlier, we now need a pane in this page. Pane’s hold images as well as storing the scale and rotation properties of the image it displays. We will be implementing panes as layers:

@implementation PaneLayer : CALayer
{
    float       _rotationRadians;
    float       _scale;

    CPImage     _image;
    CALayer     _imageLayer;

    PageView    _pageView;
}

- (id)initWithPageView:(PageView)aPageView
{
    self = [super init];

    if (self)
    {
        _pageView = aPageView;

        _rotationRadians = 0.0;
        _scale = 1.0;

        _imageLayer = [CALayer layer];
        [_imageLayer setDelegate:self];

        [self addSublayer:_imageLayer];
    }

    return self;
}

- (PageView)pageView
{
    return _pageView;
}

- (void)setBounds:(CGRect)aRect
{
    [super setBounds:aRect];

    [_imageLayer setPosition:
        CGPointMake(CGRectGetMidX(aRect),
        CGRectGetMidY(aRect))];
}

- (void)setImage:(CPImage)anImage
{
    if (_image == anImage)
        return;

    _image = anImage;

    if (_image)
        [_imageLayer setBounds:CGRectMake(0.0, 0.0,
            [_image size].width, [_image size].height)];

    [_imageLayer setNeedsDisplay];
}

- (void)setRotationRadians:(float)radians
{
    if (_rotationRadians == radians)
        return;

    _rotationRadians = radians;

    [_imageLayer setAffineTransform:CGAffineTransformScale(
        CGAffineTransformMakeRotation(_rotationRadians),
        _scale, _scale)];
}

- (void)setScale:(float)aScale
{
    if (_scale == aScale)
        return;

    _scale = aScale;

    [_imageLayer setAffineTransform:CGAffineTransformScale(
        CGAffineTransformMakeRotation(_rotationRadians),
        _scale, _scale)];
}

- (void)drawInContext:(CGContext)aContext
{
    CGContextSetFillColor(aContext, [CPColor grayColor]);
    CGContextFillRect(aContext, [self bounds]);
}

- (void)imageDidLoad:(CPImage)anImage
{
    [_imageLayer setNeedsDisplay];
}

- (void)drawLayer:(CALayer)aLayer inContext:(CGContext)aContext
{
    var bounds = [aLayer bounds];

    if ([_image loadStatus] !=
        CPImageLoadStatusCompleted)
        [_image setDelegate:self];
    else
        CGContextDrawImage(aContext, bounds, _image);
}

@end

That’s the entire PaneLayer class and it’s pretty straight forward. I just put it in PageView.j for now right before the implementation of PageView. You can choose put it in a separate file, but don’t forget to import it in PageView.j if you do.

Let’s start by looking at the insance variables. As I said, the pane layer keeps an image, rotation, and scale, represented here by _image, _rotationRadians, and _scale. We have two additional members though: _imageLayer, which we will use to draw the image, and _pageView, which just gives us a reference to our owning page.

In initWithPageView: we set up our default values. Clearly we’d like the image to start off unrotated and unscaled. We also create our internal _imageLayer and set ourselves to be the delegate with setDelegate:. Delegates are an important concept in Cappuccino, because they allow you to modify the behavior of classes without having to subclass them. Many classes in Cappuccino allow you to supply a delegate, and then call several methods on that delegate. In this case, we set ourselves as the delegate of the image layer class because we want to implement drawLayer:inContext:

- (void)drawLayer:(CALayer)aLayer inContext:(CGContext)aContext
{
    var bounds = [aLayer bounds];

    if ([_image loadStatus] != CPImageLoadStatusCompleted)
        [_image setDelegate:self];
    else
        CGContextDrawImage(aContext, bounds, _image);
}

This delegate method allows another class to draw within the _imageLayer. In this case all we’re doing is drawing our image into the layer. aContext is the drawing context of the layer in question, and we use CGContextDrawImage to render _image to the rectangle bounds. This just means that we always want the image to fit the entire width and height of the layer. Notice that we use delegates once more though: If the image hasn’t completed loading, we set ourselves as the delegate of the image. Once the image has completed loading, it will send its delegate the imageDidLoad: message:

- (void)imageDidLoad:(CPImage)anImage
{
    [_imageLayer setNeedsDisplay];
}

So once the image has completed loading, we just tell our _imageLayer that it needs to redisplay itself because it has new information to show. The other drawing function we have is the layer’s own drawInContext:, where all we do is draw gray since this will be the background color of our pane.

The rest of the methods are now prety straight forward since they are just setters and getters for our existing properties. We supply the pageView method to allow one to get the owning page view. We override setBounds: to keep the internal _imageLayer centered, and we use setImage: to set the image of the layer:

- (void)setImage:(CPImage)anImage
{
    if (_image == anImage)
        return;

    _image = anImage;

    if (_image)
        [_imageLayer setBounds:CGRectMake(0.0, 0.0,
            [_image size].width, [_image size].height)];

    [_imageLayer setNeedsDisplay];
}

We use the information from the image to set the size of the _imageLayer, since we want them to match. We also once again inform our _imageLayer that it needs to redraw because it now has a new image.

The last two methods are the most interesting and where the magic happens. Both setScale: and setRotationRadians: use the built in transformation methods to adjust the _imageLayer. In both cases we simply take our two values and create a transform with them. This is all that is necessary in Cappuccino to rotate and scale layers.

- (void)setRotationRadians:(float)radians
{
    if (_rotationRadians == radians)
        return;

    _rotationRadians = radians;

    [_imageLayer setAffineTransform:CGAffineTransformScale(
        CGAffineTransformMakeRotation(_rotationRadians),
        _scale, _scale)];
}

- (void)setScale:(float)aScale
{
    if (_scale == aScale)
        return;

    _scale = aScale;

    [_imageLayer setAffineTransform:CGAffineTransformScale(
        CGAffineTransformMakeRotation(_rotationRadians),
        _scale, _scale)];
}

Let’s now go ahead and create a simple pane within our page view:

@implementation PageView : CPView
{
    CALayer     _rootLayer;

    PaneLayer   _paneLayer;
}

- (id)initWithFrame:(CGRect)aFrame
{
    self = [super initWithFrame:aFrame];

    if (self)
    {
        _rootLayer = [CALayer layer];

        [self setWantsLayer:YES];
        [self setLayer:_rootLayer];

        [_rootLayer setBackgroundColor:
            [CPColor whiteColor]];

        _paneLayer = [[PaneLayer alloc]
            initWithPageView:self];

        [_paneLayer setBounds:CGRectMake(0, 0,
            400 - 2 * 40, 400. - 2 * 40)];
        [_paneLayer setAnchorPoint:CGPointMakeZero()];
        [_paneLayer setPosition:CGPointMake(40, 40)];

        [_paneLayer setImage:[[CPImage alloc]
            initWithContentsOfFile:
            @"Resources/sample.jpg"
            size:CGSizeMake(500, 430)]];

        [_rootLayer addSublayer:_paneLayer];

        [_paneLayer setNeedsDisplay];

        [_rootLayer setNeedsDisplay];
    }

    return self;
}

@end

For now we are just going to use a default image for our pane, which you can download here and put into a folder called “Resources”. We set the size of the _paneLayer with setBounds:, and the position of the layer with a combination of setAnchorPoint: and setPosition:. This is because unlike CPViews, by default the position of a CALayer refers to the position of its center point. To make the position refer to the top left corner, we have to specify an achor point of (0.0, 0.0).

Wrapping Up

We are now almost done with our application. All that is left is to bring together the photo inspector and the page view. The photo inspector will essentially “edit” the page views, so let’s add the following code after [_rootLayer addSublayer:_paneLayer] in initWithFrame:

_borderLayer = [CALayer layer];

[_borderLayer setAnchorPoint:CGPointMakeZero()];
[_borderLayer setBounds:[self bounds]];
[_borderLayer setDelegate:self];

[_rootLayer addSublayer:_borderLayer];

Also add _borderLayer to PageView’s declaration:

@implementation PageView : CPView
{
    CALayer     _borderLayer;
    CALayer     _rootLayer;

    PaneLayer   _paneLayer;
}

The border layer is meant to draw the borders of the panes. Once again we are making ourselves the delegate of _borderLayer, so add drawLayer:inContext: to PageView

- (void)drawLayer:(CALayer)aLayer inContext:(CGContext)aContext
{
    CGContextSetFillColor(aContext, [CPColor whiteColor]);

    var bounds = [aLayer bounds],
        width = CGRectGetWidth(bounds),
        height = CGRectGetHeight(bounds);

    CGContextFillRect(aContext, CGRectMake(0, 0, width, 40));
    CGContextFillRect(aContext, CGRectMake(0, 40,
        40, height - 2 * 40));
    CGContextFillRect(aContext, CGRectMake(width - 40, 40,
        40, height - 2 * 40));
    CGContextFillRect(aContext, CGRectMake(0, height - 40,
        width, 40));
}

Here we are just drawing a few white-filled rectangles to be the borders of our internal pane. We can now add a new method called setEditing: to our page view:

- (void)setEditing:(BOOL)isEditing
{
    [_borderLayer setOpacity:isEditing ? 0.5 : 1.0];
}

What this method does is make the border of our pane semi-transparent when we are editing. That way as you scale and rotate you can still see much of the full image despite it being “inside” the pane.

We will now return to our PhotoInspector class to make it aware of these two new classes we’ve created. Start by adding a PaneLayer to the PhotoInspector declaration:

@import <AppKit/CPWindowController.j>
@import "PageView.j"

@implementation PhotoInspector : CPWindowController
{
    CPSlider    _scaleSlider;
    CPSlider    _rotationSlider;

    PaneLayer   _paneLayer;
}

Now let’s add a few methods to make the PhotoInspector a singleton, since there’s only ever one used in the application:

var PhotoInspectorSharedInstance    = nil;

@implementation PhotoInspector : CPWindowController
{
    CPSlider    _scaleSlider;
    CPSlider    _rotationSlider;

    PaneLayer   _paneLayer;
}

+ (PhotoInspector)sharedPhotoInspector
{
    if (!PhotoInspectorSharedInstance)
        PhotoInspectorSharedInstance = [[PhotoInspector alloc] init];

    return PhotoInspectorSharedInstance;
}

You can now get at the shared PhotoInspector instance by calling [PhotoInspector sharedPhotoInspector]. Notice that this method begins with a plus instead of a minus. That’s because this is a class method. Also, we declared a file local variable to store the shared instance at the top with this line:

var PhotoInspectorSharedInstance    = nil;

Unlike JavaScript, varing variables in a file does trap them in that file’s scope, so this variable will only be accessible through the sharedPhotoInspector method.

We will now add the setter for the _paneLayer member, which represents the pane and image that the photo inspector is currently inspecting:

- (void)setPaneLayer:(PaneLayer)anPaneLayer
{
    if (_paneLayer == anPaneLayer)
        return;

    [[_paneLayer pageView] setEditing:NO];

    _paneLayer = anPaneLayer;

    var page = [_paneLayer pageView];

    [page setEditing:YES];

    if (_paneLayer)
    {
        var frame = [page convertRect:[page bounds] toView:nil],
            windowSize = [[self window] frame].size;

        [[self window] setFrameOrigin:
            CGPointMake(CGRectGetMidX(frame) -
            windowSize.width / 2.0, CGRectGetMidY(frame))];
    }
}

As you can see, when we pass in a new pane layer, we first do a little bit of cleanup on our old pane layer if we have one. We tell its corresponding page view that we are no longer editing, and then tell the new pane layer’s page view that we are editing (thus dimming the border described above). We then position our window at the center of the pane.

Let’s actually make our two sliders useful now by giving them targets and actions in our init method after they are created:

[rotationSlider setTarget:self];
[rotationSlider setAction:@selector(rotate:)];

[scaleSlider setTarget:self];
[scaleSlider setAction:@selector(scale:)];

Targets and actions are kind of like callbacks, but object-oriented and much more powerful. Instead of supplying a callback function, you supply both a callback object, or target, and a callback method to call on that object. In this case, when we move the rotationSlider, we will have rotate: called on self (the PhotoInspector instance), and when we move the scaleSlider, scale: will be called.

We of course must implement scale: and rotate: in PhotoInspector for this to be useful at all:

- (void)scale:(id)aSender
{
    [_paneLayer setScale:[aSender value] / 100.0];
}

- (void)rotate:(id)aSender
{
    [_paneLayer setRotationRadians:PI / 180 * [aSender value]];
}

All we do in these two methods is make use of the setters we implemented in the PaneLayer class. You might have noticed that our code is curiously devoid of the null-checks you so often find in JavaScript, Java, C++, etc. That’s because Objective-J just ignores messages sent to nil, so instead of having to do:

if (myObject)
    [myObject method];

You can safely do:

[myObject method];

We are going to add two more methods to PhotoInspector to complete it:

+ (void)inspectPaneLayer:(PaneLayer)anPaneLayer
{
    var inspector = [self sharedPhotoInspector];

    [inspector setPaneLayer:anPaneLayer];

    [inspector showWindow:self];
}

- (void)windowWillClose:(id)aSender
{
    [self setPaneLayer:nil];
}

The first just provides a shorthand for bringing up the inspector and telling it to inspect a certain PaneLayer. The second handles the case when the inspector window is closed: we certainly don’t want to leave the currently editing pane in editing mode, so we set our editing pane to be nil. However, to receive the windowDidCLose: method, we must make ourselves the delegate of our window, which we can do in the init method:

//...
if (self)
{
    [theWindow setTitle:@"Inspector"];
    [theWindow setFloatingPanel:YES];

    [theWindow setDelegate:self];
//...

Our PhotoInspector is now complete, we just need to bring it up when we double click on our page view. To do this, let’s return to the PageView class and add a mouseDown: method:

- (void)mouseDown:(CPEvent)anEvent
{
    if ([anEvent clickCount] == 2)
        [PhotoInspector inspectPaneLayer:_paneLayer];
}

There is no need to register for events in Cappuccino as you might do in JavaScript, simply implement on of the event handling methods such as mouseDown: and you will receive the event. Here, we simply check the click count of the mouse down event and inspect our single pange if it is a double click.

To finish this application, put the following in your applicationDidFinishLaunching: to make a sample PageView:

- (void)applicationDidFinishLaunching:(CPNotification)aNotification
{
    var theWindow = [[CPWindow alloc]
            initWithContentRect:CGRectMakeZero()
            styleMask:CPBorderlessBridgeWindowMask],
        contentView = [theWindow contentView];

    [contentView setBackgroundColor:[CPColor blackColor]];

    [theWindow orderFront:self];

    var bounds = [contentView bounds],
        pageView = [[PageView alloc] initWithFrame:
            CGRectMake(CGRectGetWidth(bounds) / 2
            - 200, CGRectGetHeight(bounds) / 2 - 200,
            400, 400)];

    [pageView setAutoresizingMask:  CPViewMinXMargin |
                                    CPViewMaxXMargin |
                                    CPViewMinYMargin |
                                    CPViewMaxYMargin];

    [contentView addSubview:pageView];

    var label = [[CPTextField alloc] initWithFrame:CGRectMakeZero()];

    [label setTextColor:[CPColor whiteColor]];
    [label setStringValue:@"Double Click to Edit Photo"];

    [label sizeToFit];
    [label setFrameOrigin:CGPointMake(CGRectGetWidth(bounds) / 2 -
        CGRectGetWidth([label frame]) / 2,
        CGRectGetMinY([pageView frame]) -
        CGRectGetHeight([label frame]))];
    [label setAutoresizingMask: CPViewMinXMargin |
                                CPViewMaxXMargin |
                                CPViewMinYMargin |
                                CPViewMaxYMargin];

    [contentView addSubview:label];
}

Your AppController.j should now look something like this:

@import <Foundation/CPObject.j>

@import "PageView.j"
@import "PhotoInspector.j"


@implementation AppController : CPObject
{
}

- (void)applicationDidFinishLaunching:(CPNotification)aNotification
{
    var theWindow = [[CPWindow alloc]
            initWithContentRect:CGRectMakeZero()
            styleMask:CPBorderlessBridgeWindowMask],
        contentView = [theWindow contentView];

    [contentView setBackgroundColor:[CPColor blackColor]];

    [theWindow orderFront:self];

    var bounds = [contentView bounds],
        pageView = [[PageView alloc] initWithFrame:
            CGRectMake(CGRectGetWidth(bounds) / 2
            - 200, CGRectGetHeight(bounds) / 2 - 200,
            400, 400)];

    [pageView setAutoresizingMask:  CPViewMinXMargin |
                                    CPViewMaxXMargin |
                                    CPViewMinYMargin |
                                    CPViewMaxYMargin];

    [contentView addSubview:pageView];

    var label = [[CPTextField alloc] initWithFrame:CGRectMakeZero()];

    [label setTextColor:[CPColor whiteColor]];
    [label setStringValue:@"Double Click to Edit Photo"];

    [label sizeToFit];
    [label setFrameOrigin:CGPointMake(CGRectGetWidth(bounds) / 2 -
        CGRectGetWidth([label frame]) / 2,
        CGRectGetMinY([pageView frame]) -
        CGRectGetHeight([label frame]))];
    [label setAutoresizingMask: CPViewMinXMargin |
                                CPViewMaxXMargin |
                                CPViewMinYMargin |
                                CPViewMaxYMargin];

    [contentView addSubview:label];
}

@end

Conclusion

This concludes our first tutorial. We’ve gotten familiar with some of the drawing and event constructs of Cappuccino and have put together a pretty simple prototype of our Scrapbook application. Next time, we’ll be going deeper into events and drag and drop to start making our application more useful.

Something you may have noticed is that we never once spoke about browser inconsistencies, nor do we have any conditional code based on what browser the user is on. Since all the constructs we use are from Cappuccino, we shift all the heavy lifting of these sorts of tasks to the framework, and can instead focus on the key features of our application.
